What is in the Yealink CMKit-121?

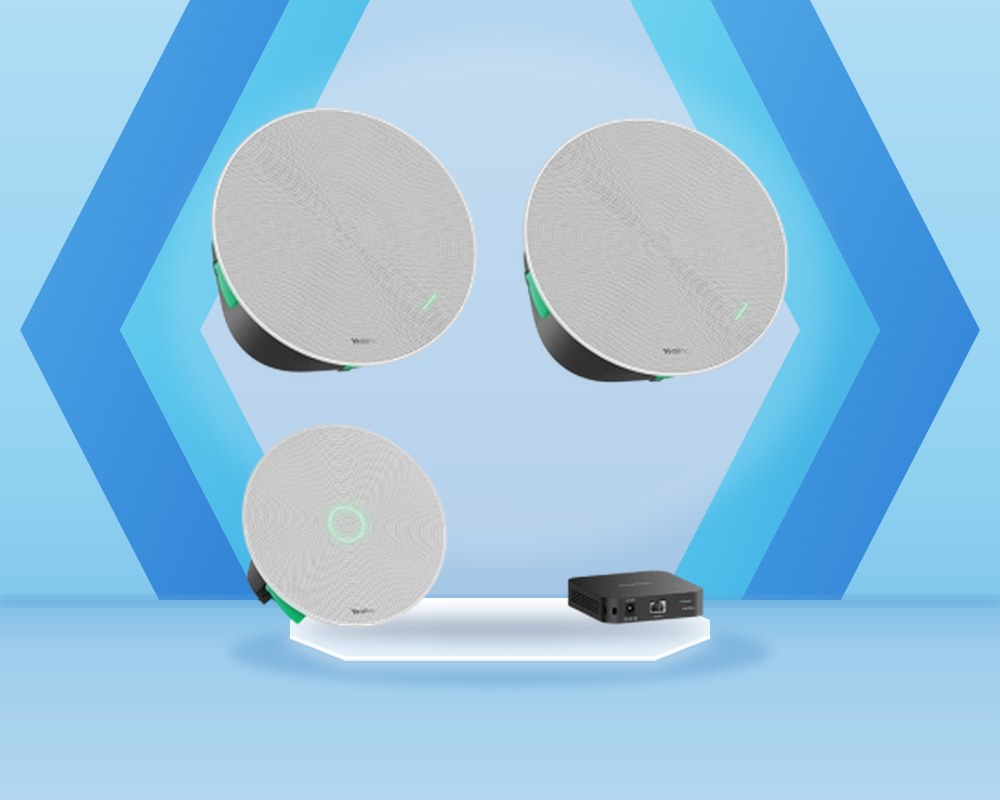

Three products: one SkySound CM20 ceiling microphone, two CS10 ceiling speakers and one RCH40 E2 switch. Together they form the base of Yealink’s ceiling audio setup for a meeting room.

What size room does the CMKit-121 cover?

One kit covers a standard medium to large room of about 5 m by 8 m. For an extra-large room of about 6 m by 10 m, use two kits; each one runs as an independent audio unit.

Which video conferencing systems does it work with?

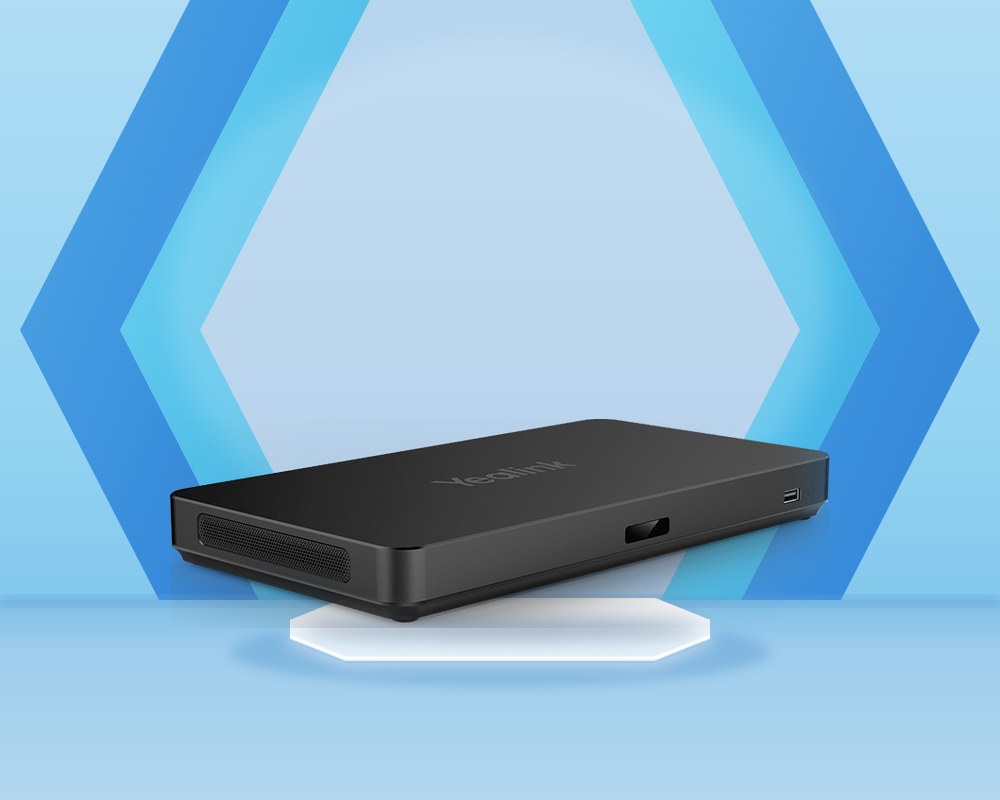

The CM20 and CS10 work with the Yealink AVHub (firmware 153.433.0.5 or later) the Yealink UVC86 (151.433.0.5 or later) and the Yealink UVC84 (262.433.0.5 or later). The CM20 also plugs into Yealink MVC systems without a separate DSP.

Why does the kit include a switch?

Yealink network audio needs a switch with Energy Efficient Ethernet turned off and with QoS support. The included RCH40 E2 has Energy Efficient Ethernet disabled and supports Dante and AES67, so the kit does not depend on finding a suitable switch.

What is the warranty?

Telnamix warranties Yealink hardware for 3 years.

Yealink CMKit-121

Ceiling audio kit for one meeting room: a CM20 microphone, two CS10 speakers and an RCH40 E2 switch

$1,859.00MSRP

The listed price is not our best price. It is usually the manufacturer’s suggested retail price, or the lowest price our agreements let us advertise. Add it to your quote and we’ll get you our best price, with a 3-year warranty on Yealink hardware.

The Yealink CMKit-121 is a boxed ceiling audio system for a medium to large meeting room. It pairs one SkySound CM20 ceiling microphone with two CS10 ceiling speakers plus an RCH40 E2 network switch, and one kit covers a room of about 5 m by 8 m. For a room of about 6 m by 10 m, Yealink combines two kits.

Questions about the CMKit-121? .

About the Yealink CMKit-121

Ceiling audio keeps microphones and speakers off the meeting table. Choosing the parts separately means matching a microphone, speakers and a network switch that suits audio traffic. The CMKit-121 is Yealink’s matched set for one room: the CM20 picks up voices, the two CS10 speakers play the far end, and the RCH40 E2 switch links them together.

The CM20 has 16 omnidirectional microphones in 8 pickup zones, covers a radius of up to 4 m, and gives high-quality full-duplex pickup within 3 m. Its built-in DSP handles noise and reverberation reduction, so on a Yealink MVC system it works without a separate audio processor. The CS10 speakers are tuned toward the mid-range, where speech sits. The RCH40 E2 is a compact switch with Energy Efficient Ethernet turned off and support for Dante and AES67 audio, which is what Yealink’s network audio needs.

Everything for one room
The microphone, two speakers and the network switch for one room come together in one box.
Sized for real rooms
One kit covers a room of about 5 m by 8 m. Two kits together cover about 6 m by 10 m, each running as its own audio unit.
16-microphone pickup
The CM20 uses 16 microphones across 8 zones, with a pickup radius of up to 4 m.
Speakers tuned for speech
The CS10 sound profile favors mid-range frequencies for clearer voices on calls.
A switch that suits audio
The RCH40 E2 has Energy Efficient Ethernet disabled and supports Dante and AES67.
Yealink MVC and Teams
The CM20’s built-in DSP lets the kit plug into Yealink MVC Microsoft Teams Rooms systems without an extra DSP.

CMKit-121 part number and price

Version	Package	Part number	MSRP
CMKit-121	CM20, 2 x CS10, RCH40 E2	1103836	$1,859.00
