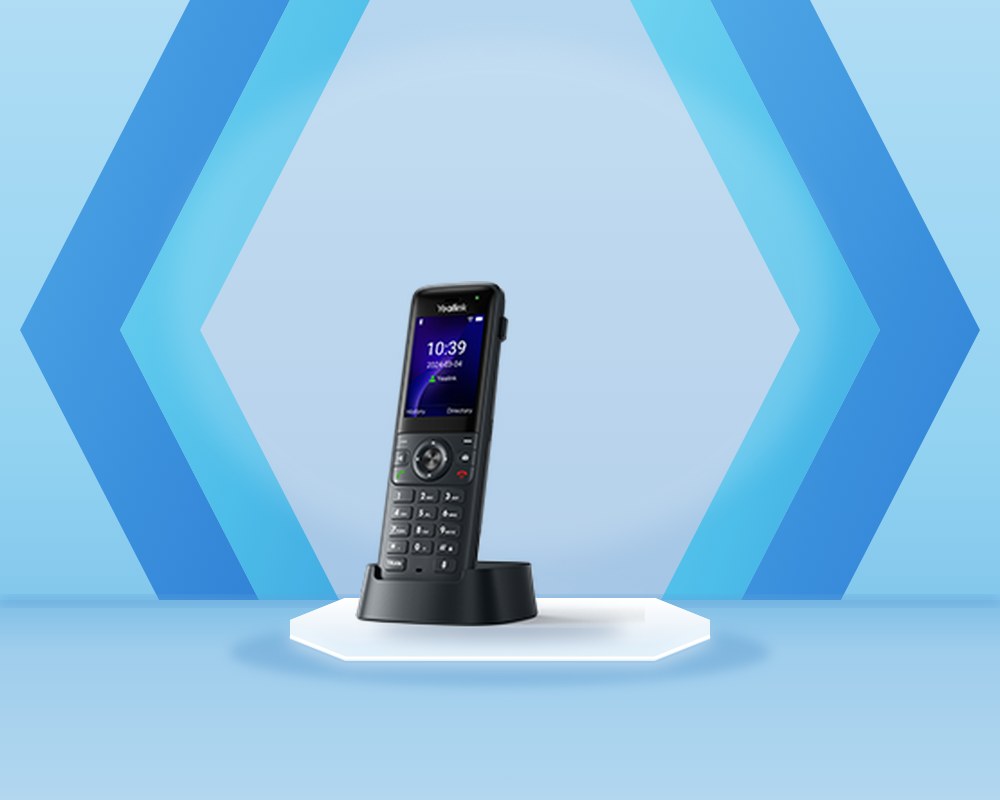

Yealink AX83H
Wi-Fi 6 SIP handset for staff who work away from a desk
$159.00MSRP
The listed price is not our best price. It is usually the manufacturer’s suggested retail price, or the lowest price our agreements let us advertise. Add it to your quote and we’ll get you our best price, with a 3-year warranty on Yealink hardware.
The Yealink AX83H is a Wi-Fi 6 handset for people who move around an office, store, hotel or warehouse and need their phone extension with them. It registers up to 4 SIP accounts over your Wi-Fi network, roams between access points, and its 2000 mAh battery gives up to 9 hours of talk time or 200 hours on standby.
Questions about the AX83H? .
About the Yealink AX83H
The AX83H needs no DECT base station. It joins your existing Wi-Fi on 2.4 or 5 GHz (802.11a/b/g/n/ac/ax) and uses the 802.11k, v and r roaming standards to move between access points during a call, so it works anywhere the building has good Wi-Fi coverage. It registers to your phone system as a SIP phone, with up to four accounts and local 5-way conferencing.
The handset has a 2.4-inch color screen, a backlit keypad, vibration and a proximity sensor, and its earpiece is hearing aid compatible. Headsets connect over Bluetooth 5.0 or the 3.5 mm jack. It charges in its cradle or from a USB-C cable (the cable is not included), and it can be wall or stand mounted. For setup, Wi-Fi details can be shared to a handset by QR code or to many handsets over the air, and the AX83H is managed through Yealink's device management platforms.
Wi-Fi 6 with roaming
Dual-band 2.4 and 5 GHz Wi-Fi 6, with 802.11k/v/r for moving between access points without dropping the call.
Up to 4 SIP accounts
Carry more than one line on one handset, with local 5-way conference calls.
Battery life
Up to 9 hours of talk time or 200 hours of standby from a 2000 mAh battery, in ideal conditions.
Headset ready
Bluetooth 5.0 for wireless headsets and a 3.5 mm jack for wired ones.
Clear calls in busy places
HD audio and Yealink noise filtering, with a hearing aid compatible earpiece.
Fast deployment
Share Wi-Fi settings by QR code or over the air, and manage handsets through Yealink's device management platforms.
AX83H part number and price
There is one version of the AX83H. If the handset will face water, dust or drops, look at the ruggedized AX86R instead.
| Version | Wi-Fi | Battery | Part number | MSRP |
|---|---|---|---|---|
| AX83H Wi-Fi Phone | Wi-Fi 6, 2.4 and 5 GHz | 2000 mAh | 1301013 | $159.00 |
Yealink AX83H specifications
Display and keys
| Screen | 2.4-inch 240 x 320 color TFT |
|---|---|
| Keys | 2 soft keys, 7 function keys, navigation and OK keys |
| Other | Keypad backlight, vibration, proximity sensor, call and message LED |
Network
| Wi-Fi | Dual band 2.4 GHz and 5 GHz, 802.11a/b/g/n/ac/ax |
|---|---|
| Roaming | 802.11k/v/r |
| Wi-Fi security | WPA, WPA2, WPA3 |
| Bluetooth | Version 5.0, for headsets |
| Quality of service | 802.11e/WMM, Layer 3 ToS and DSCP |
Calling
| SIP accounts | Up to 4 |
|---|---|
| Conference calls | Local 5-way |
| Phone system features | Call park, call pickup, intercom, multicast paging, voicemail, message waiting indicator, call recording |
| Phonebook | 1000 local entries, XML and LDAP remote phonebooks, Google contacts |
| Codecs | G.722, G.711, G.729, G.726, G.723.1, iLBC |
| Security | TLS 1.3, SRTP, secure boot |
Battery and power
| Battery | 2000 mAh, rechargeable |
|---|---|
| Talk time | Up to 9 hours (ideal conditions) |
| Standby time | Up to 200 hours (ideal conditions) |
| Charging | Charger cradle or USB-C cable (cable not included) |
Size and environment
| Handset size | 151.0 x 49.5 x 21 mm |
|---|---|
| Handset weight | 126 g |
| Interfaces | 3.5 mm headset jack, USB-C |
| Operating temperature | 0 to 40°C (32 to 104°F) |
What is in the box
- AX83H handset
- Rechargeable battery
- Charger cradle
- Power adapter
- Belt clip
- Quick start guide
Questions about the Yealink AX83H
- Does the Yealink AX83H work with a Telnamix hosted phone system or 3CX?
- Yes. It is a SIP phone that registers up to 4 SIP accounts over Wi-Fi. Registering to a SIP phone system is how it works with a Telnamix hosted or 3CX system.
- Does the AX83H need a base station?
- No. It connects directly to your Wi-Fi network, so it works wherever your Wi-Fi reaches. Good coverage across the areas where staff walk matters more than with a desk phone.
- How long does the battery last?
- Yealink rates it for up to 9 hours of talk time or 200 hours of standby, in ideal conditions. It charges in the included cradle or from a USB-C cable.
- Can I use a headset with the AX83H?
- Yes. It pairs with Bluetooth headsets over Bluetooth 5.0, with answer, end and mute from the headset, and it has a 3.5 mm jack for wired headsets.
- Should I choose the AX83H or the AX86R?

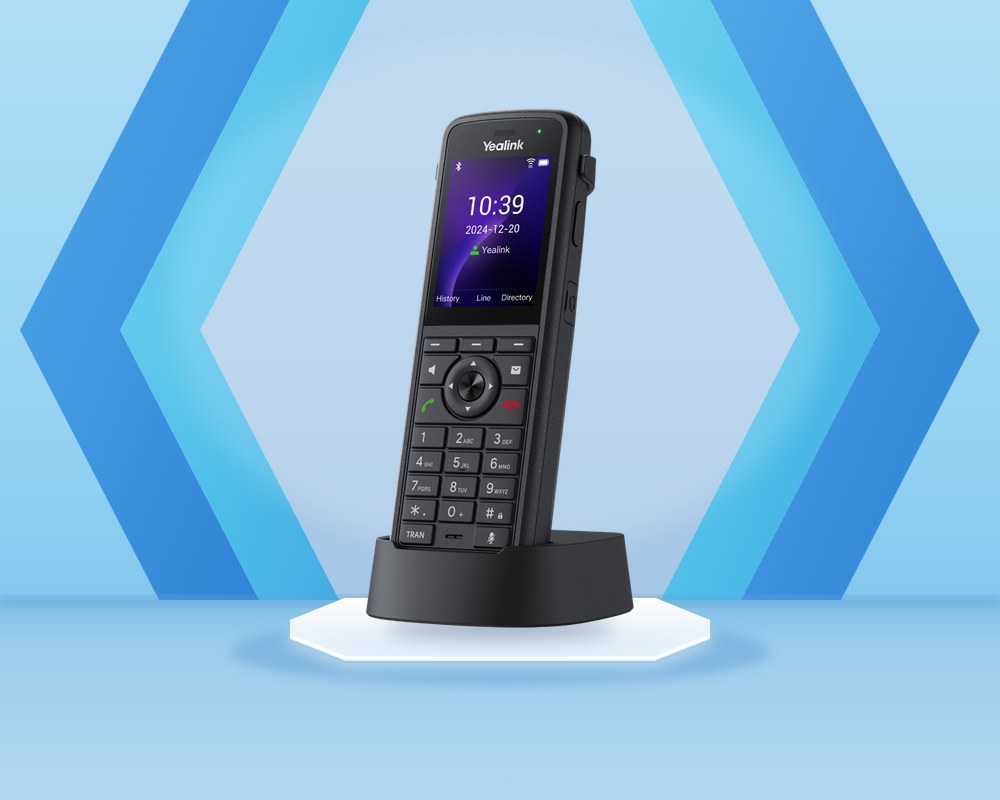

- The AX83H suits offices, shops and hotels. The AX86R is Yealink's ruggedized model, sealed against water and dust, drop rated, with a larger battery, a push-to-talk key and an emergency alarm button.
- What is the warranty?
- Telnamix warranties Yealink hardware for 3 years.
Questions about the Yealink AX83H?
Tell us how your team works and we'll recommend the right hardware, with no pressure.
